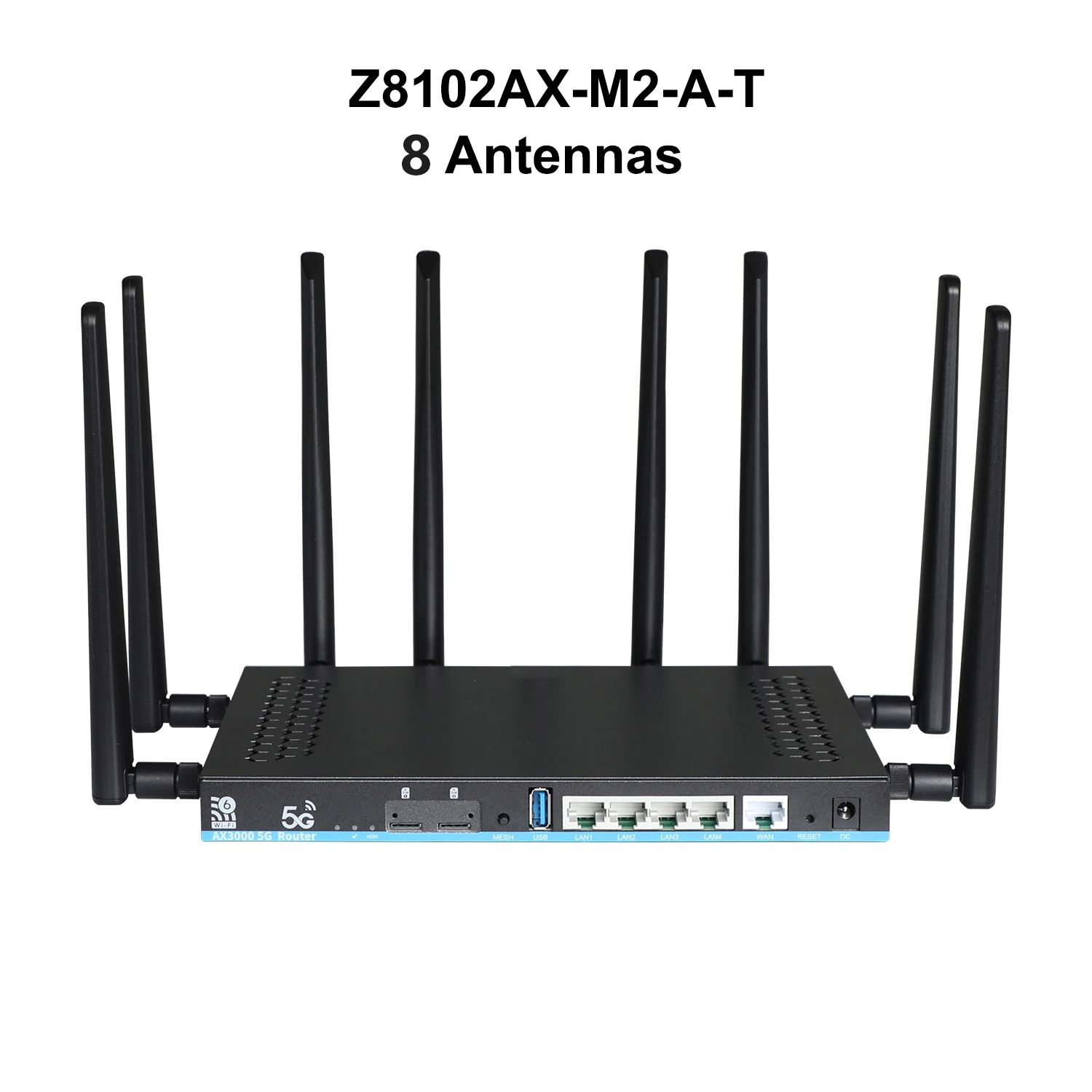

WiFi 6 Dual SIM AX3000 Mesh Router

Dual SIM Card 5G Router Wifi6 Mesh 5g Module 3000Mbps wifi Openwrt USB3.0 4 Gigabit LAN 4T4R MU-MIMO Antennas , 2.4Ghz 5GHz Wifi for 256 user 1. Relevant standards and specifications:

① Support IEEE802.11N/G/B/a/ac/ax, IEEE802.3/802.3u/802.ab network protocol, the max transmission rate could be 3000Mbps

② 5*10/100/1000 Mbps Auto MDI/MDIX

③ Independent WIFI6 MT7981B chip, supporting smooth connection of 256 devices

2. Main Features:

● Adopting MT7981B chip, ARM Cortext-A53 dual core CPU, with a main frequency of up to 1.3GHz

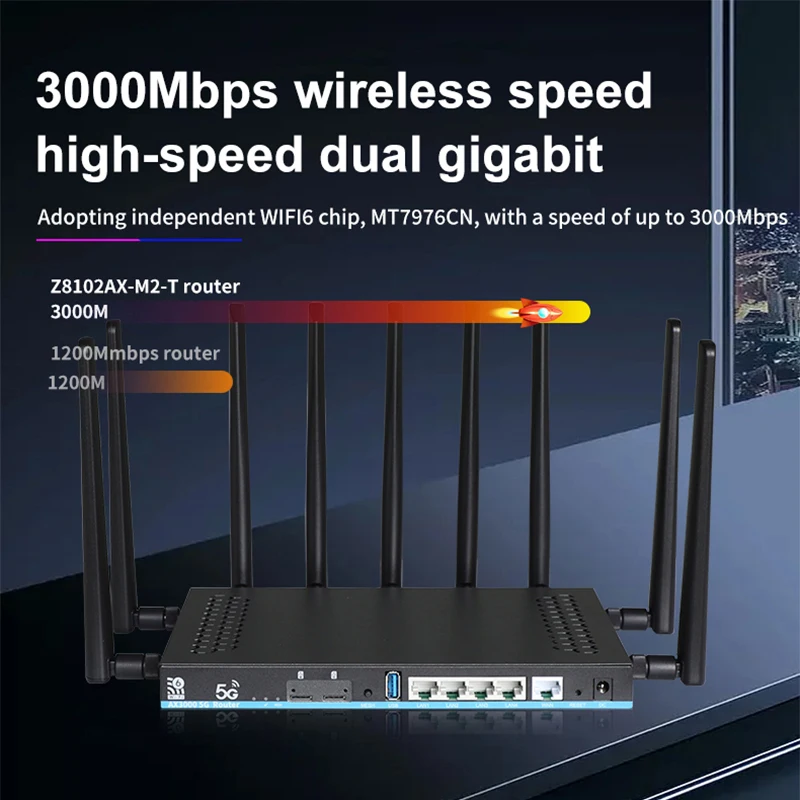

● Dual band 2.4ghz 5ghz concurrent wireless rate up to 3000mbps
● Support MU-MIMO, and WiFi modulation mode supports 1024-qam and OFDMA, Can connect 256 WiFi users
● Supporting IPv6 technology, with larger address space, improve the forwarding efficiency of WiFi 6 router
● Each WiFi channel is independently equipped with high-power FEM, which is combined with high gain antenna to achieve super WiFi coverage

● High speed 1GB DDR4 , paired with 128MB SPINAND Flash
● Supporting mesh one click technology, intelligent networking, plug and play
● Full 1000Mbps adaptive network interface of 1 WAN and 4 LAN, supporting automatic flip (auto MDI / mdix)
● Built-in two m.2 interface is used to connect 5g/4G module, and the module power supply is independently controlled through GPIO
